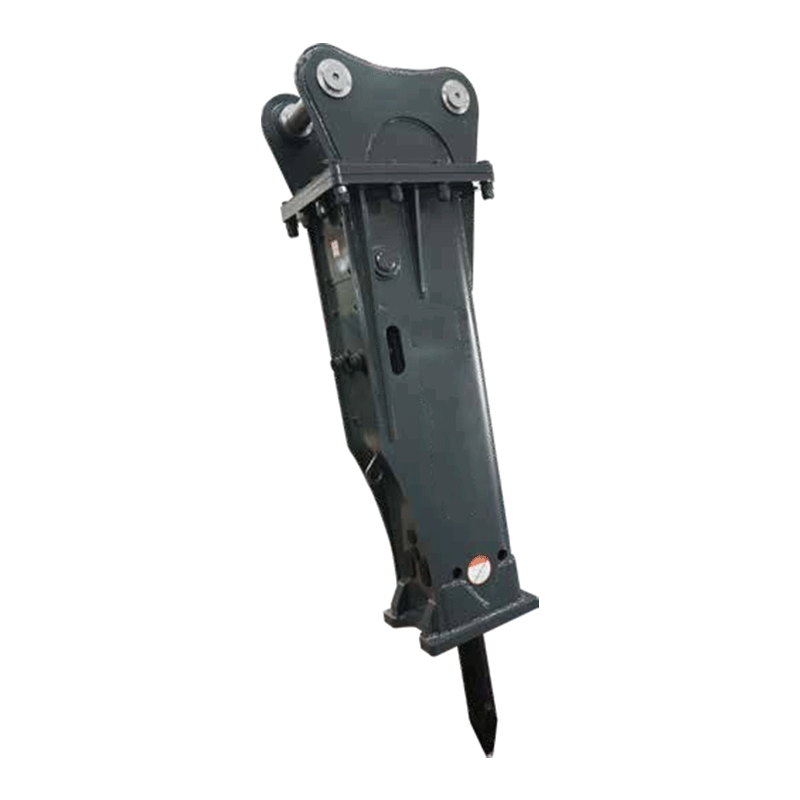

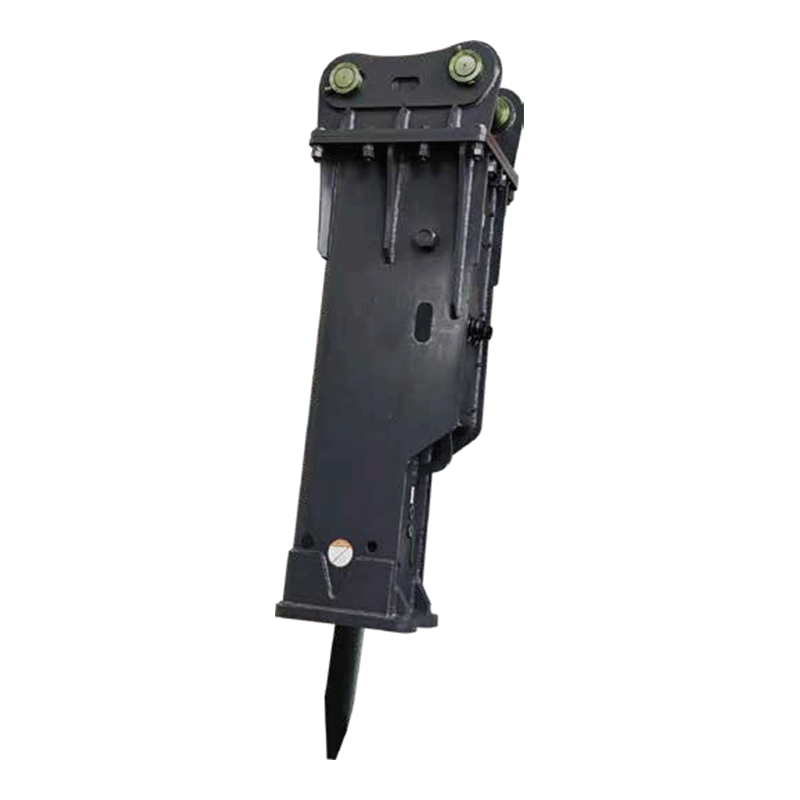

LICHMACH Box Type Silence Rock Jack Hammer for Excavator
Breaker hammer is widely used in ore crushing, construction materials, metallurgical casting, chemical industry and other fields. It is a very commonly used mining equipment. At the same time, breaker hammers can also be used in civil engineering, concrete demolition and other industries.
We're here to help: Easy ways to get the answers you need!
BREAKER SPECIFICATIONS
| Item | Model | Weight | Overall length | Hydraulic working pressure | Hydraulic oil flow | Setting Pressure | Impact Rate | striking energy | Hose diameter | Chisel rod diameter | Suitable Excavator |
| Units | (kg) | (mm) | bar | (L/min) | bar | (b.p.m) | (j) | (inch) | (mm) | (ton) | |
| LC-40 | LC10 | 79 | 936 | 90~120 | 15~30 | 130 | 600~1100 | 204 | 1/2 | 40 | 0.5~1.2 |
| LC-45 | LC20 | 105 | 1071 | 90~120 | 20~40 | 140 | 600~1100 | 280 | 1/2 | 45 | 0.8~1.5 |
| LC-53 | LC30 | 166 | 1170 | 90~130 | 20~50 | 150 | 600~1100 | 406 | 1/2 | 53 | 1.5~3.5 |
| LC-60 | 227 | 1280 | 90~130 | 20~50 | 150 | 600~1100 | 722 | 1/2 | 60 | 4.5~6 | |
| LC-68 | LC40 | 289 | 1398 | 900~130 | 40~60 | 160 | 500~990 | 1016 | 1/2 | 68 | 4.5~6 |
| LC-75 | LC43 | 410 | 1677 | 120~150 | 50~90 | 180 | 450~980 | 1835 | 1/2 | 75 | 6~8.5 |
| LC-85 | 580 | 1777 | 130~160 | 60~100 | 190 | 360~690 | 2055 | 3/4 | 85 | 7~11 | |
| LC-100 | LC50 | 841 | 1997 | 150~180 | 80~110 | 200 | 350~700 | 3102 | 3/4 | 100 | 10~15 |
| LC-125 | 1337 | 2230 | 160~180 | 90~120 | 210 | 350~580 | 6190 | 1 | 125 | 14~18 | |
| LC-135 | LC20G | 1671 | 2287 | 160~180 | 100~150 | 210 | 350~500 | 6190 | 1 | 135 | 18~22 |
| LC-140 | LC81 | 1977 | 2307 | 160~220 | 120~180 | 210 | 350~450 | 6485 | 1 | 140 | 20~24 |
| LC-140F | LC81F | 2177 | 2307 | 160~220 | 120~180 | 210 | 350~750 | 6977 | 1 | 140 | 20~27 |
| LC-150 | LC30G | 2448 | 2607 | 170~190 | 130~190 | 230 | 280~400 | 9380 | 1 1/4 | 150 | 24~27 |
| LC-155 | LC121 | 2739 | 2700 | 180~230 | 180~240 | 250 | 200~300 | 10930 | 1 1/4 | 155 | 24~33 |
| LC-155F | LC121F | 2787 | 2700 | 180~230 | 180~240 | 250 | 200-400 | 11977 | 1 1/4 | 155 | 27~33 |
| LC-165 | LC131 | 3217 | 2977 | 200~240 | 190~260 | 260 | 150~300 | 13200 | 1 1/4 | 165 | 33~36 |
| LC-175 | LC151 | 3757 | 3220 | 210~240 | 200~250 | 270 | 120~200 | 15500 | 1 1/4 | 175 | 35~38 |
| LC-175L | LC151L | 4257 | 3350 | 210~240 | 200~250 | 290 | 120~200 | 16507 | 1 1/4 | 175 | 36~42 |
| LC-185 | 4307 | 3327 | 220~260 | 220~280 | 300 | 120~180 | 22380 | 1 1/4 | 185 | 37~50 | |
| LC-190 | 4986 | 3537 | 240~280 | 240~280 | 300 | 110~160 | 24280 | 1 1/4 | 190 | 40~50 | |
| LC-195 | 5400 | 3627 | 260~300 | 250~320 | 320 | 100~140 | 25490 | 1 1/4 | 195 | 45~55 | |
| LC-200 | 6388 | 3837 | 260~300 | 260~340 | 320 | 100~140 | 29700 | 1 1/4 | 200 | 48~60 | |
| LC-205 | 6780 | 3847 | 260~300 | 280~360 | 330 | 100~140 | 32260 | 1 1/4 | 205 | 52~60 | |
| LC-210 | 7017 | 3917 | 260~300 | 280~360 | 330 | 100~140 | 35670 | 1 1/₂ | 210 | 55~65 | |
| LC-220 | 7137 | 4047 | 260~300 | 280~360 | 330 | 100~140 | 37280 | 1 1/₂ | 220 | 60~65 | |
| LC-220L | 7520 | 4177 | 260~300 | 300~430 | 340 | 100~140 | 47000 | 1 1/₂ | 220 | 65~100 | |
| LC-230 | 8909 | 4227 | 260~300 | 330~430 | 340 | 90~130 | 49800 | 1 1/₂ | 220 | 70~100 | |
| LC-240 | 92200 | 4257 | 260~300 | 330~430 | 340 | 90~130 | 59800 | 1 1/₂ | 220 | 70~120 | |
| LC-260 | 10888 | 4877 | 260~300 | 420~550 | 350 | 90~130 | 62000 | 1 1/₂ | 220 | 90~150 | |

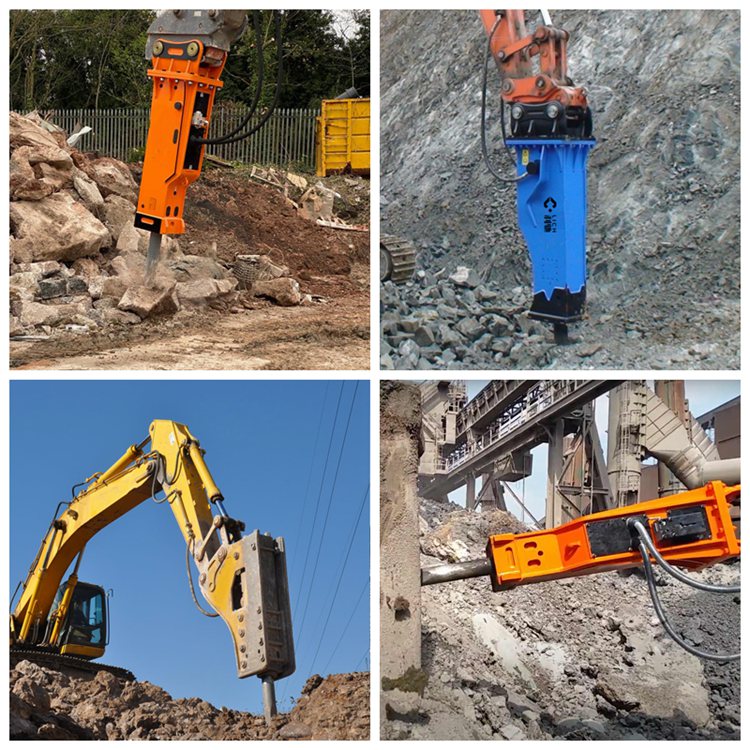

Usage:
Demolition of buildings, crushing of concrete, secondary crushing of mines, repair of highways, crushing of cement pavements, etc
Building demolition, tunnel excavation, mining, concrete rushing. In the metallurgical field, it can be used for cleaning steadies and slag, dismantling furnaces, and dismantling equipment foundations
Features: High impact frequency, high impact energy, and low energy consumption are widely used due to their efficient crushing ability and flexibility.
BREAKER Applicant
Breaker hammer is widely used in ore crushing, construction materials, metallurgical casting, chemical industry and other fields. It is a very commonly used mining equipment. At the same time, breaker hammers can also be used in civil engineering, concrete demolition and other industries.
In short, the use of breakers in mines has many advantages, which can increase the mineral acquisition rate, save energy and reduce emissions, be environmentally friendly, have low maintenance costs and are easy to use. Therefore, it is widely used in the mining field and related industries.
Low noise, widely used in urban construction, with minimal impact on surrounding citizens during construction, large rewardingly, and widely used for its efficient crushing ability and flexibility
Please send us your request and we will reply to you within 24 hours.
Reach out to us anytime and we'll happily answer your questions.
Tel
+86-371-86663455

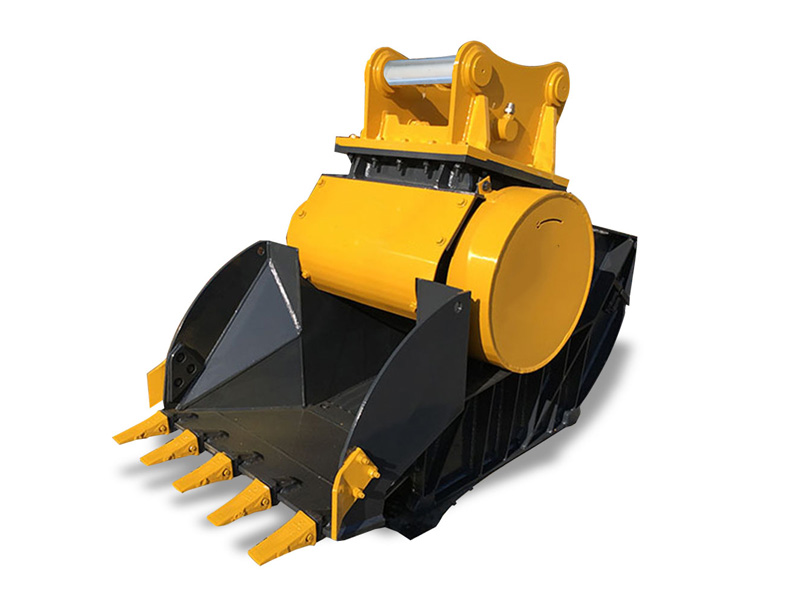

This Crusher Bucket is suitable for the crushing of granite, basalt, pebble, limestone and other rocks. BKM Crusher Bucket is suitable for the crushing of all concrete and building demolition solid waste, and it is handy for dealing with hard rock.Heavy-duty structure, can work under high load for a long time.
