Lichmach Triangle Side Hydraulic breaker hammer for mini & large excavator

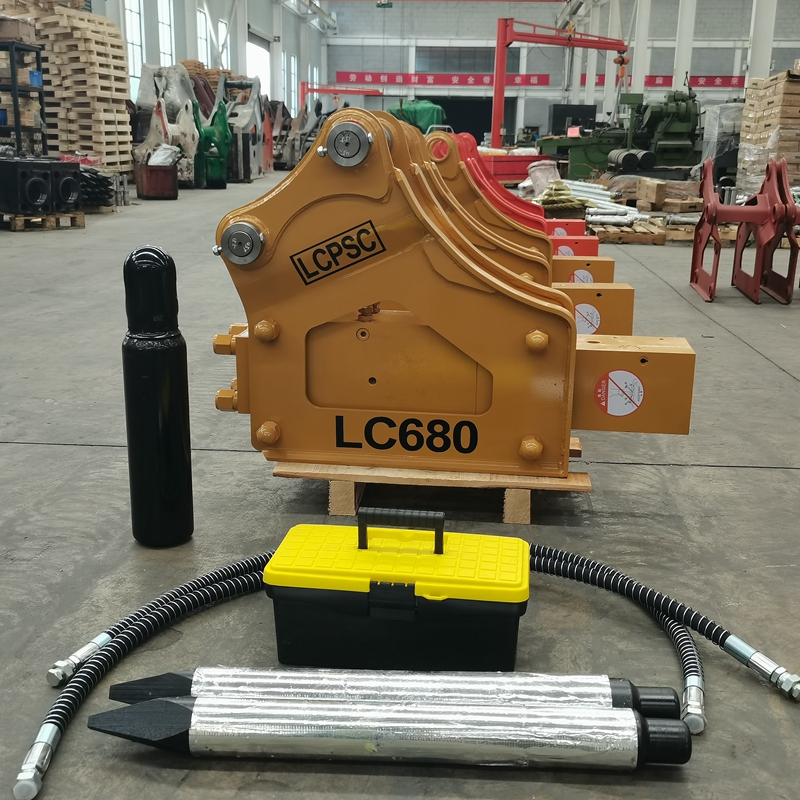

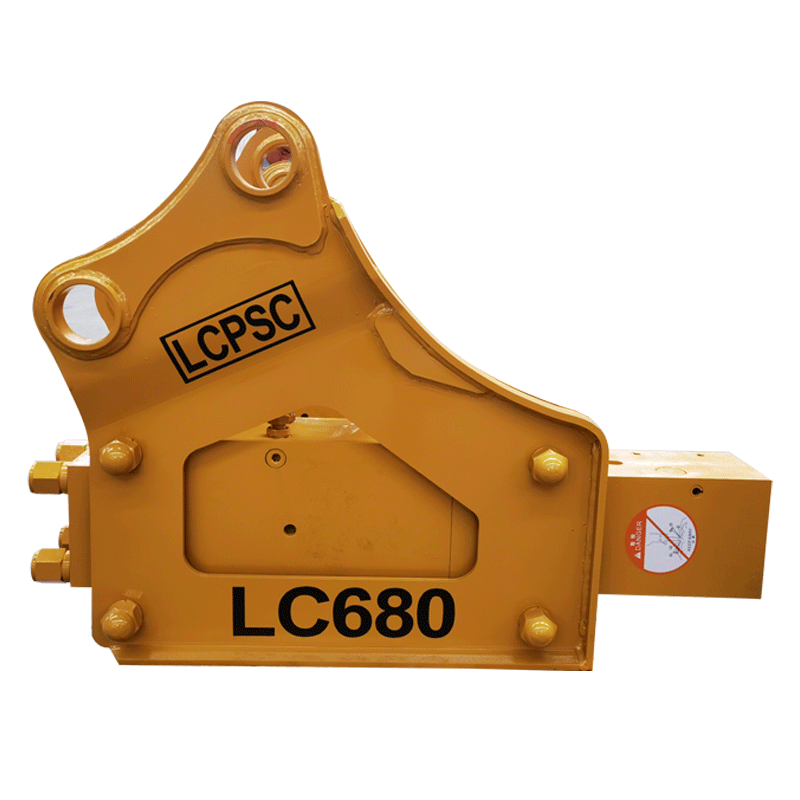

LC680 breaker hammer is usually suitable for conventional 6-ton excavators
We're here to help: Easy ways to get the answers you need!
BREAKER SPECIFICATIONS
Item | Model |
Weight |
Overall length |
Hydraulic working pressure | Hydraulic oil flow | Setting Pressure | Impact Rate | striking energy | Hose diameter |
Chisel rod diameter |
Suitable Excavator |
Units | (kg) | (mm) | bar | (L/min) | bar | (b.p.m) | (j) | (inch) | (mm) | (ton) | |
LC-40 | LC10 | 79 | 936 | 90~120 | 15~30 | 130 | 600~1100 | 204 | 1/2 | 40 | 0.5~1.2 |
LC-45 | LC20 | 105 | 1071 | 90~120 | 20~40 | 140 | 600~1100 | 280 | 1/2 | 45 | 0.8~1.5 |
LC-53 | LC30 | 166 | 1170 | 90~130 | 20~50 | 150 | 600~1100 | 406 | 1/2 | 53 | 1.5~3.5 |
LC-60 | 227 | 1280 | 90~130 | 20~50 | 150 | 600~1100 | 722 | 1/2 | 60 | 4.5~6 | |
LC-68 | LC40 | 289 | 1398 | 900~130 | 40~60 | 160 | 500~990 | 1016 | 1/2 | 68 | 4.5~6 |
LC-75 | LC43 | 410 | 1677 | 120~150 | 50~90 | 180 | 450~980 | 1835 | 1/2 | 75 | 6~8.5 |
LC-85 | 580 | 1777 | 130~160 | 60~100 | 190 | 360~690 | 2055 | 3/4 | 85 | 7~11 | |
LC-100 | LC50 | 841 | 1997 | 150~180 | 80~110 | 200 | 350~700 | 3102 | 3/4 | 100 | 10~15 |
LC-125 | 1337 | 2230 | 160~180 | 90~120 | 210 | 350~580 | 6190 | 1 | 125 | 14~18 | |
LC-135 | LC20G | 1671 | 2287 | 160~180 | 100~150 | 210 | 350~500 | 6190 | 1 | 135 | 18~22 |
LC-140 | LC81 | 1977 | 2307 | 160~220 | 120~180 | 210 | 350~450 | 6485 | 1 | 140 | 20~24 |
LC-140F | LC81F | 2177 | 2307 | 160~220 | 120~180 | 210 | 350~750 | 6977 | 1 | 140 | 20~27 |
LC-150 | LC30G | 2448 | 2607 | 170~190 | 130~190 | 230 | 280~400 | 9380 | 1 1/4 | 150 | 24~27 |
LC-155 | LC121 | 2739 | 2700 | 180~230 | 180~240 | 250 | 200~300 | 10930 | 1 1/4 | 155 | 24~33 |
LC-155F | LC121F | 2787 | 2700 | 180~230 | 180~240 | 250 | 200-400 | 11977 | 1 1/4 | 155 | 27~33 |
LC-165 | LC131 | 3217 | 2977 | 200~240 | 190~260 | 260 | 150~300 | 13200 | 1 1/4 | 165 | 33~36 |
LC-175 | LC151 | 3757 | 3220 | 210~240 | 200~250 | 270 | 120~200 | 15500 | 1 1/4 | 175 | 35~38 |
LC-175L | LC151L | 4257 | 3350 | 210~240 | 200~250 | 290 | 120~200 | 16507 | 1 1/4 | 175 | 36~42 |
LC-185 | 4307 | 3327 | 220~260 | 220~280 | 300 | 120~180 | 22380 | 1 1/4 | 185 | 37~50 | |
LC-190 | 4986 | 3537 | 240~280 | 240~280 | 300 | 110~160 | 24280 | 1 1/4 | 190 | 40~50 | |
LC-195 | 5400 | 3627 | 260~300 | 250~320 | 320 | 100~140 | 25490 | 1 1/4 | 195 | 45~55 | |
LC-200 | 6388 | 3837 | 260~300 | 260~340 | 320 | 100~140 | 29700 | 1 1/4 | 200 | 48~60 | |
LC-205 | 6780 | 3847 | 260~300 | 280~360 | 330 | 100~140 | 32260 | 1 1/4 | 205 | 52~60 | |
LC-210 | 7017 | 3917 | 260~300 | 280~360 | 330 | 100~140 | 35670 | 1 1/₂ | 210 | 55~65 | |
LC-220 | 7137 | 4047 | 260~300 | 280~360 | 330 | 100~140 | 37280 | 1 1/₂ | 220 | 60~65 | |
LC-220L | 7520 | 4177 | 260~300 | 300~430 | 340 | 100~140 | 47000 | 1 1/₂ | 220 | 65~100 | |
LC-230 | 8909 | 4227 | 260~300 | 330~430 | 340 | 90~130 | 49800 | 1 1/₂ | 220 | 70~100 | |
LC-240 | 92200 | 4257 | 260~300 | 330~430 | 340 | 90~130 | 59800 | 1 1/₂ | 220 | 70~120 | |
LC-260 | 10888 | 4877 | 260~300 | 420~550 | 350 | 90~130 | 62000 | 1 1/₂ | 220 | 90~150 |
Advantages of our Lich breaker hammer
BREAKER Applicant
Breaker hammer is widely used in ore crushing, construction materials, metallurgical casting, chemical industry and other fields. It is a very commonly used mining equipment. At the same time, breaker hammers can also be used in civil engineering, concrete demolition and other industries.
In short, the use of breakers in mines has many advantages, which can increase the mineral acquisition rate, save energy and reduce emissions, be environmentally friendly, have low maintenance costs and are easy to use. Therefore, it is widely used in the mining field and related industries.
