    Breaker hammer is widely used in ore crushing, construction materials, metallurgical casting, chemical industry and other fields. It is a very commonly used mining equipment. At the same time, breaker hammers can also be used in civil engineering, concrete demolition and other industries.

    We're here to help: Easy ways to get the answers you need!

    Send Inquiry Online Chat



    BREAKER SPECIFICATIONS

    Item Model Weight Overall length Hydraulic working pressure Hydraulic oil flow Setting Pressure Impact Rate striking energy Hose diameter Chisel rod diameter Suitable  Excavator
    Units (kg) (mm) bar (L/min) bar (b.p.m) (j) (inch) (mm) (ton)
    LC-40 LC10 79 936 90~120 15~30 130 600~1100 204 1/2 40 0.5~1.2
    LC-45 LC20 105 1071 90~120 20~40 140 600~1100 280 1/2 45 0.8~1.5
    LC-53 LC30 166 1170 90~130 20~50 150 600~1100 406 1/2 53 1.5~3.5
    LC-60  227 1280 90~130 20~50 150 600~1100 722 1/2 60 4.5~6
    LC-68 LC40 289 1398 900~130 40~60 160 500~990 1016 1/2 68 4.5~6
    LC-75 LC43 410 1677 120~150 50~90 180 450~980 1835 1/2  75 6~8.5
    LC-85 580 1777 130~160 60~100 190 360~690 2055  3/4  85 7~11
    LC-100 LC50 841 1997 150~180 80~110 200 350~700 3102 3/4 100 10~15
    LC-125 1337 2230 160~180 90~120 210 350~580 6190 1 125 14~18
    LC-135 LC20G 1671 2287 160~180 100~150 210 350~500 6190  1 135 18~22
    LC-140 LC81 1977 2307 160~220 120~180 210 350~450 6485 1 140 20~24
    LC-140F LC81F 2177 2307 160~220 120~180  210 350~750 6977 1  140 20~27
    LC-150 LC30G 2448 2607 170~190 130~190 230 280~400 9380 1 1/4 150 24~27
    LC-155 LC121 2739 2700 180~230 180~240 250 200~300 10930 1 1/4 155 24~33
    LC-155F LC121F 2787 2700 180~230 180~240 250 200-400 11977 1 1/4 155 27~33
    LC-165 LC131 3217 2977 200~240 190~260 260 150~300 13200 1 1/4 165 33~36
    LC-175 LC151 3757 3220 210~240 200~250 270 120~200 15500 1 1/4 175 35~38
    LC-175L LC151L 4257 3350 210~240 200~250 290 120~200 16507 1 1/4 175 36~42
    LC-185 4307 3327 220~260 220~280 300 120~180 22380 1 1/4 185 37~50
    LC-190 4986 3537 240~280 240~280 300 110~160 24280 1 1/4 190 40~50
    LC-195 5400 3627 260~300 250~320 320 100~140 25490 1 1/4 195 45~55
     LC-200 6388 3837 260~300 260~340 320 100~140 29700 1 1/4 200 48~60
    LC-205 6780 3847 260~300 280~360 330 100~140 32260 1 1/4 205 52~60
    LC-210 7017 3917 260~300 280~360 330 100~140 35670 1 1/₂ 210 55~65
    LC-220 7137 4047 260~300 280~360 330 100~140 37280 1 1/₂ 220 60~65
    LC-220L 7520 4177 260~300 300~430 340 100~140 47000 1 1/₂ 220 65~100
    LC-230 8909 4227 260~300 330~430 340 90~130 49800 1 1/₂ 220 70~100
    LC-240 92200 4257 260~300 330~430 340 90~130 59800 1 1/₂ 220 70~120
    LC-260 10888 4877 260~300 420~550 350 90~130 62000 1 1/₂ 220 90~150

    LICHMACH Box Type Silence Rock Jack Hammer for Excavator



    Usage:

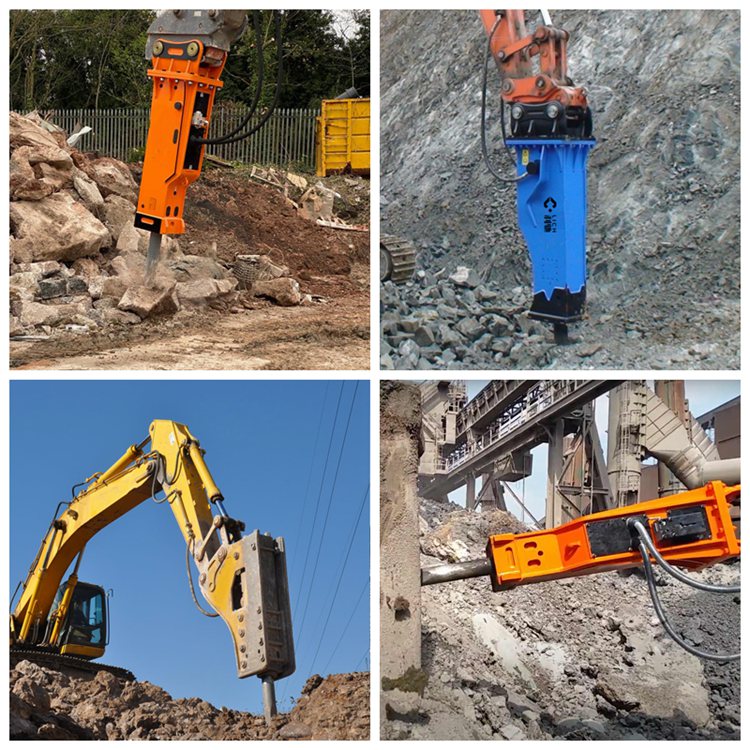

    Demolition of buildings, crushing of concrete, secondary crushing of mines, repair of highways, crushing of cement pavements, etc

    Building demolition, tunnel excavation, mining, concrete rushing. In the metallurgical field, it can be used for cleaning steadies and slag, dismantling furnaces, and dismantling equipment foundations

    Features: High impact frequency, high impact energy, and low energy consumption are widely used due to their efficient crushing ability and flexibility.

    LICHMACH Box Type Silence Rock Jack Hammer for Excavator

    BREAKER Applicant

    Breaker hammer is widely used in ore crushing, construction materials, metallurgical casting, chemical industry and other fields. It is a very commonly used mining equipment. At the same time, breaker hammers can also be used in civil engineering, concrete demolition and other industries.

    In short, the use of breakers in mines has many advantages, which can increase the mineral acquisition rate, save energy and reduce emissions, be environmentally friendly, have low maintenance costs and are easy to use. Therefore, it is widely used in the mining field and related industries.

    Low noise, widely used in urban construction, with minimal impact on surrounding citizens during construction, large rewardingly, and widely used for its efficient crushing ability and flexibility
